MegaSquirt PNP Gen2 Documentation
Note that this is the main documentation that is applicable to all MSPNP Gen2
Platform ECUs. For each individual model there is a model-specific
addendum to this documentation which addresses the particular installation needs
and other unique features of each model of MSPNP G2 EMS. Please refer to
the bottom of this page for links to the model-specific documentation for your
application.
Click here for legacy Generation 1
documentation.
Introduction
What is a MegaSquirtPNP EMS?
The MSPNP is a powerful Engine Management
System that completely replaces the stock ECU for racing applications.
If you're not excited, take a moment and GET EXCITED NOW! You've now got
the power to fully unleash all of the potential of your engine both with
your current configuration and with any modifications you'll perform in
the future, no matter how extreme you want to take it!
The
MegaSquirt PNP takes over the functions the stock ECU provides – fuel
control, ignition control, and various other outputs – and lets you
adjust these yourself by connecting a laptop to the MSPNP. It is
designed to plug right into the factory harness where the factory ECU
used to be, and if your engine is pretty close to stock, will easily
start your engine just like the factory computer did. You will, however,
want to fine-tune your MSPNP in order to get the most out of your car’s
potential. After all, this ability to tune the fuel and spark maps to
match your engine is what a Standalone EMS is all about.
At its core, the MSPNP uses a MicroSquirt
Module running MS2/Extra firmware, combined with extension boards
designed by DIYAutotune.com. Bowling & Grippo describe the MegaSquirt as
“an experimental do-it-yourself programmable electronic fuel injection
controller.” With MSPNP, we’ve already done the experimenting,
programming, and wiring needed to make it work with your engine. The
MSPNP also has a CANBus output that can be used to talk to expansion
modules from DIYAutoTune.com or other MegaSquirt product vendors.
For the majority of you, we’ve packed all
the features you’ll ever need right into the core of the unit and you’ll
likely never care to modify anything. We didn’t stop with the base
feature set of the MegaSquirt but improved upon it a bit… read on.
We’ve added functions to the MSPNP that
many original factory ECUs do not have. Some of these are built in and
use your existing harness, while others require a few changes to the
wiring to access since your factory harness didn't support these
features. Since MegaSquirt is a speed density system, it is possible to
remove the air flow meter (AFM or MAF) to reduce intake restriction if

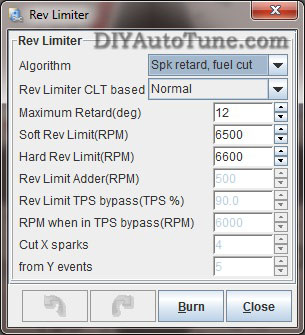

you’d like to. You can set the rev limiter anywhere you want it, and
choose either spark cut or fuel cut based rev limiting on most MSPNP
applications.
We also have a launch control feature you
can turn on that lets you rev the engine up to a lower rev limit when
active. You can set this up to either activate the launch control with
an added-on switch, or make the launch control active whenever you put

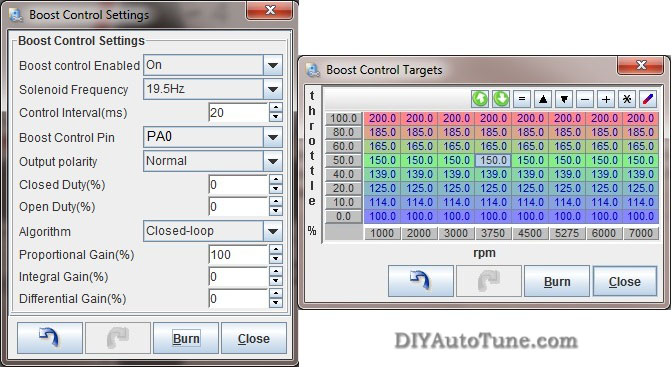

the clutch in using the stock clutch switch. We also have boost control
and knock sensor input built in, as well as many other features.
Everything has warning labels…
While most of the warnings will
appear in the text discussing what the warning is about, there are a few
words of caution before you start installing your MSPNP.
First, the MSPNP is designed for racing
applications and other cars that do not need to be emissions legal. It
does not use many of the OEM emissions control devices on the engine,
nor is its base map tuning calibrated to pass an emissions test.
The MSPNP is not waterproof. Then again,
neither are most stock ECUs. It’s designed to be put in the passenger
compartment, not under the hood or in places where it will get rained or
splashed on.
We have thoroughly tested the MSPNP on
multiple cars, and the ‘base map’ tuning should get a stock engine or a
mildly modified engine running with no problem. However if you are using
this on a modified engine, the tuning may need significant adjustment to
properly run your engine. You’ll want to dial in the settings before you
really push the engine hard. Engines with significant modifications such
as those requiring larger injectors may need several settings changed
before they will start at all (though setting it up for larger injectors
is easy, and covered in this manual). Even if your car is stock, you’ll
still need to fine tune the base map for your car to ensure your car is
safely tuned as all cars are different. You do not want to damage your
engine due to assuming the base map is just fine for your car. It’s
close, but don’t assume it’s perfect. GET IT TUNED IN!
The MSPNP is designed and tested to work
with the stock electronics, wiring harness, and sensors. As a general
rule, it will work with almost any modification that works with the
stock ECU, and many others that would not have. The only real exception
to this is when attempting to use the MSPNP with conflicting
electronics. For instance, the MSPNP should not be used with
piggyback tuning systems (but why would you?) or other signal
interceptors that effect the sensor readings and/or outputs that the
MSPNP is using. Attempting to do so may result in unpredictable
results, or may simply not work at all and could prevent the MSPNP from
running your car properly. As long as you are using the factory ignition
system, you can add pretty much any modifications available as long as
you tune the MSPNP to work with them. You are only likely to run into
trouble if you try changing the crank trigger/cam angle sensor or
ignition module to something that does not work with the stock ECU, and
in many cases the MSPNP can be adapted to support these as well, though
you're getting away from a Plug-N-Play install at that point.
Being a speed density system, your
MegaSquirtPNP will let you remove the factory air flow meter. (More
details on this below). It calculates the amount of fuel to inject based
on RPM and manifold pressure. The MSPNP uses a 4 bar MAP sensor that can
handle up to 44 psi of boost if you’ve turbocharged or supercharged your
engine, though if you're not running forced induction you're still just
fine with this sensor. It just allows for the big plans you may have
down the road.
The settings and table values depicted
within this document are for illustration purposes only.
Refer to the included base maps for the intial settings and values
necessary for your application.
Section Two: Installation
Overview of connectors

Some of the features on the MSPNP EMS are
rather obvious as to why they are there, such as the holes to mount it
or the logo on the top to let everyone know how awesome you are due to
the EMS you that are running. But it has a few things on it that call for
some explanation.
On the back, there's a 15 pin connector.
Here is what the pins do. The connector has small numbers cast into it
to identify which pin is which. ALL OF THESE CONNECTIONS ARE OPTIONAL AND
NOT REQUIRED TO RUN YOUR CAR ON THE MSPNP! These are there keeping the
DIY spirit alive, giving you the power to add new capabilities to your
vehicle!
-
Boost control solenoid
-
Spark output A
-
Spark output B
-
“WLED” relay control / Spark output C
-
“ALED” relay control / Spark output D
-
CANBus high
-
CANBus low
-
Cam sensor input
-
Launch control input
-
IAT sensor input
-
Tach output
-
Table switch input
-
Knock sensor input
-
Oxygen sensor input
-
Sensor ground
The 9 pin connector next to the 15 pin
connector is a serial connector for connecting the MSPNP to your laptop
with the provided tuning cable. If your laptop does not have the
matching plug, you will need a USB to serial adapter, we recommend the
USB-2920 that we sell at DIYAutoTune.com for best results.
The small connector that looks like it
could be for a set of headphones – well, it is. On engines equipped with
a knock sensor, this allows you to listen to the knock sensor. In most
cases if your vehicle had a factory knock sensor, we've already tied it
in through the factory wiring harness. If your vehicle did NOT
have a factory knock sensor, you can add one, if you like, using the 15
pin connector outlined above.
Some knock sensors have built in
filters, and there's a similar filter in the MSPNP, so it will cut out a
portion of the sounds that are not related to engine knock. You will
need to take the cover off to adjust the volume (see section 4, Tuning)
as well as adjust the knock sensor; we recommend starting at the lowest
setting, fully counterclockwise.
There is a small barbed fitting on the
back of the MSPNP's case. This is for connecting the MAP sensor. The
sensor is designed to work with a rubber hose with around 7/64” - 1/8”
inside diameter, which is included in the kit.
The four screws on the back that look like
they might be for adjusting something – they're not. Leave them alone.

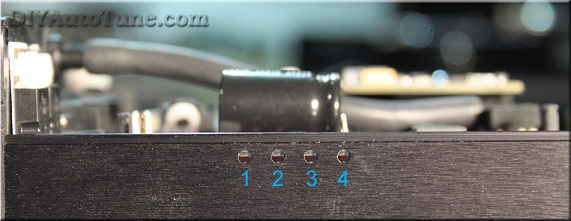

There are four small holes in the side of
the case for viewing indicator LEDs. Looking at the side of the case,
from left to right, this what these LEDs do:
-
12 volt power: This light comes on
when the ECU has power.
-
Logic power: Normally, this light
comes on whenever the 12 volt power is on. Used mostly for
specialized diagnostics.
-
Tach pulse: Blinks when you have an
RPM signal.
-
Knock: Blinks when knock is detected.
The more it blinks, the higher the knock level.

Tools required
-
The MSPNP requires very few tools and
very little time to install. You will need:
-
Timing Light (adjustable or not can be
used, adjustable is nice though)
-
Philips head screwdriver
-
Flathead screwdriver
-
Drill for mounting holes – we
recommend mounting it with the included #8 sheet metal screws and a
1/8” drill bit.
-
A laptop or tuning computer to run the
included TunerStudio MS software.
Installation Overview
Installing your MSPNP EMS is likely to
take even the first time installer about an hour at most. For the
experienced and/or the professional automotive technician, you're
looking at a 20min install here in most cases.
Please note that
the steps below are just a high-level overview, you must refer to the
vehicle specific addendum (linked below, and included in the box with
your MSPNP when it shipped) for your vehicle for the specific step by
step guide for your vehicle. Skipping this vehicle specific
documentation could cause you to overlook important steps. That
said, generally speaking here's an overview of the installation process.
-
Locate and remove the factory ECU. Carefully release
the harness connector's latching mechanism and unplug the harness.
Kick the stock ECU to the curb. (OK, better not, might hurt
your foot).
-
Plug the MSPNP ECU into the factory harness in place of the factory
ECU you just removed.
-
Route the included 1/8" vacuum
hose through your firewall and connect to the MAP sensor barb on the
MSPNP. Connect the other end to the included 'T' fitting and
tee it into the vacuum signal used by your fuel pressure regulator.
-

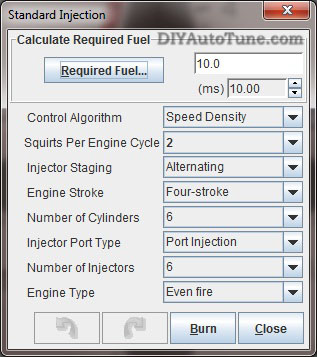

If using a different size injectors than factory, adjust the
REQ_FUEL and other settings for this based on the information in
Section Four below.
-
Set your base timing according to the
MSPNP's documentation. This is of course, VERY important.
You must forget everything you know about setting the base timing on
the factory ECU except for where you point the timing light.
You MUST use the MSPNP's instructions to properly set your timing.
The ECU cannot command proper
timing until you synchronize it's commanded timing with the actual
timing at the crankshaft. It's easy to do, only stressed here
due to importance (and the fact that people tend to try and set it
like the factory ECU required, and you're not using the factory ECU
anymore).
-
Verify all steps in the
vehicle specific installation guide for your vehicle have been
followed exactly.
-
Start your engine!
-
Tune your engine!
-
Go hit the racetrack!
Section Three: Optional Features
This completes the basic installation of
your MSPNP. It’s now ready for you to start fine-tuning it to match your
particular setup—you can continue to the next section for more on
tuning. However, there are several other connections and mods you can
add to use the MSPNP’s extra features. Some examples of this are
MAF/AFM removal to reduce intake restriction, adding an aftermarket
wideband oxygen sensor and controller, or adding a knock sensor to
vehicles that were not equipped with such from the factory.
MAF/AFM Delete
In most cases you can remove the factory
MAF or AFM from your vehicle to reduce intake restriction and increase
horsepower and torque! See your specific MSPNP model's addendum
documentation for details for your specific vehicle.
Wideband O2 Sensor and Controller
The MSPNP supports many common wideband
oxygen sensor systems, including the Innovate Motorsports LC-1 and MTX-L
products, the Zietronix ZT-2 and ZT-3 (among others), and most other
systems that provide a programmable analog voltage output. You will need
to install the controller according to the manufacturer’s directions and
then connect the MSPNP to a programmable analog output from the wideband
sensor’s controller. You should ground the wideband to the engine block
near the factory ECU ground wire to ensure an accurate reading.
There are two ways of connecting the
controller to the MSPNP. You can either connect the analog output to pin
14 of the MSPNP rear connector, or you can cut and splice the oxygen
sensor signal wire to the analog output. If you use pin 14 for wideband
input, you must disconnect the stock oxygen sensor. Do not ground the
oxygen sensor wire if you disconnect it; leave it completely unconnected
and taped off if necessary (make sure it can’t short to ground or
anything else).

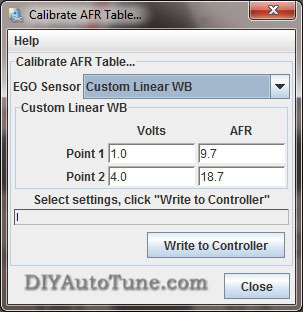

After connecting the wideband sensor
controller, you will need to change a few settings on the MSPNP. Section
Four has the details of how to change this.

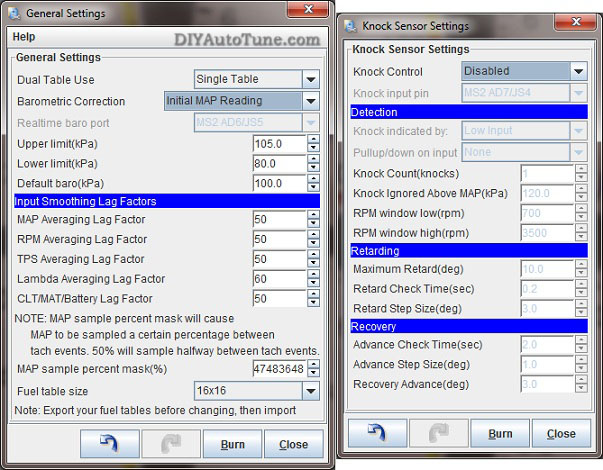

Knock sensing (on cars not
equipped with factory knock sensors)
The MSPNP is set up to wire directly to a
knock sensor using the rear connector pins 13 and 15. If your sensor is
polarized, wire the positive end to pin 13 and the negative end to pin
15. Most knock sensors have no polarity and can be wired either way. See
section 4 for how to tune the knock sensing circuit.
Launch control / Flat Shift:
Launch control may be run with either the
factory clutch switch or an external switch. If you wish to disable
using the clutch switch for launch control, you will need to take the
lid off and remove the clutch switch input jumper, see the image below
(bottom of this section, section 3) of the location of all jumpers on
the mainboard.
If you are using an external switch for
launch control, connect pin 9 of the 15 pin connector to a switch, and
connect the other side of the switch to a chassis ground. Launch control
will be active when the switch is closed.
Flat shift requires the use of the clutch
switch. It enables a different rev limiter when your foot is on the
clutch so you can shift while holding the throttle to the floor.
Flex Fuel:
Instead of launch control, pin 9 of the 15
pin connector may be connected to a GM flex fuel sensor. To enable this,
turn off launch control and go to Extended → Flex Fuel Sensor. Enable
flex fuel and set the sensor port to FLEX. The frequency numbers are set
up for a stock GM (or Ford Taurus) fuel composition sensor. The low
frequency represents the sensor output with pure gasoline, and the high
frequency represents pure ethanol. The MSPNP will multiply the pulse
width by the Fuel Correction number determined by the measured fuel
compensation, and subtract the Timing Correction value. Since the Timing
Correction is subtracted, negative numbers will advance
the timing.
Table switching:
You can enable table switching for fuel
and / or spark tables from the Extended menu. Set the switch source to
Hardware for the table you wish to switch, and the location to Local.
This will allow you to use the table switching on the 15 pin connector.
The alternate table(s) will become active when pin 12 is connected to
ground. You can use this to have a second fuel or ignition table for
race gas or when a nitrous system is active.
Note that the tables this will switch to
are called VE Table 3 and Ignition Table 3 so these are the tables
you'll tune for use when Table Switching is activated. Table 2 is used
for other functions such as multiple load input.

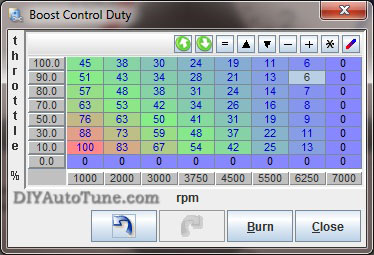

Boost control:
Pin 1 on the 15 pin connector is an output
for boost control. To use boost control, connect one terminal of an
electronic boost control solenoid valve to a 12 volt source that turns
on with the ignition, and the other terminal to pin 1 of the 15 pin
connector. The boost control solenoid valve plumbs into the line running
from the intake to the waste gate.
NOTE-- while many EBC valves could be
used, we recommend using the EBC solenoid we sell. This is the valve we
have tested with, and have setup the base maps to support. Assuming you
are using this valve, you'll wire it up with the + terminal on the valve
pigtail (there's a small plus next to the where the wiring connector
plugs in) to a switched 12v source. This valve truly has no polarity
though so it can be wired “backwards” without any problems.
Tach Output:
Pin 11 of the 15 pin connector provides a
0-12 volt signal compatible with most aftermarket tachometers. Just wire
your tachometer's trigger wire to this pin.
All Jumpers on the board:
This is what you'll refer to for the
locations of all tweakable/adjustable features on the board. In
most cases you won't need these at all. In some cases where you're
adding features to your vehicle that the factory never supported, or
choosing to use a feature configured differently than our default
configuration you may need to refer to this.

Section Four: Tuning
Think of this guide as sort of a quick start guide, as well as an
explanation of the unique features of the MSPNP. With the MegaSquirtPNP, tuning is not very
different from other MegaSquirt varieties, or most other aftermarket
standalone ECUs for that matter. If you've tuned another EMS system
before, this process will be very familiar as the fuel and ignition
tables will be very similar. You can find in-depth information on tuning
MegaSquirt in the MS2/Extra Manuals, available online at
http://www.megasquirtpnp.com/tuning
Installing the Software Package
The MSPNP comes with a CD that includes TunerStudio, MegaLogViewer, and
all the files needed to tune your EMS. If the installation program
does not automatically run when you put the disk into your CD drive, you
can right click the browse to the CD directory and double-click the
Setup.exe file.
To
begin, simply follow the prompts as they are presented and the automatic
installation will be complete in just a couple minutes. After the
software installation is complete, you can open TunerStudio,
connect to your powered MSPNP, and ensure that the proper base map is
installed. Basemaps can be found under "TunerStudioProjects"
within your computer's "My Documents" folder.
Working with MSQ files (TunerStudio
Maps)
TunerStudio stores the information from
MegaSquirt in MSQ files. The MSQ file contains all of the adjustments
and settings needed to run MegaSquirt on a particular engine. These let
you back up your tuning or compare your settings with other MegaSquirt
users.
The MSPNP CD for your vehicle comes with a
base MSQ file. We’ve tested this map out on a stock vehicle, and it
should get most cars with basic bolt-ons to start up and run with no
problem. Even if your car is stock, you will want to fine-tune it to
your particular engine, as every car varies just a bit. If you’ve added
any significant modifications, you will definitely want to do some good
tuning before really pushing your engine to its limits. But if you find
yourself getting lost and having trouble with your tuning, you can go
back and reload this default tune to make things work again as a
baseline.
The base map is intended as just that
however: a ‘base’ map. It was tuned on 93 octane fuel, and in theory is
somewhat conservative. Fuel is different from gas station to gas
station, and pump to pump, so what is in theory conservative here may be
aggressive on your fuel. AT A MINIMUM RUN THE BEST PUMP FUEL AVAILABLE,
AND GET IT TUNED IN, AND KEEP RUNNING THAT FUEL OR BETTER. On a stock
car EXACTLY like ours, in EXACTLY the same condition, this map should
make similar power to stock, maybe a bit better—though we recommend only
running premium fuel, and getting the system properly tuned for your car
as soon as possible. With this EMS you have full control of all aspects
of engine management on your vehicle. You will find you have excellent
results when properly tuned. Though giving you that level of control
means you also have the power to tune your engine very badly if you
improperly tune things, and could even melt down your engine in a hurry
if you don’t tune the engine properly. The power to tune is just that,
very powerful… Do it right the first time, and if you’re not confident
in your ability to do so, get a professional tuner to assist you on a
load-bearing steady state dyno where the maps can be properly tuned in
for your car. Once that’s done by a qualified tuner, you can rest
assured that your engine is safely making all of the power that it can
make with optimum drivability.

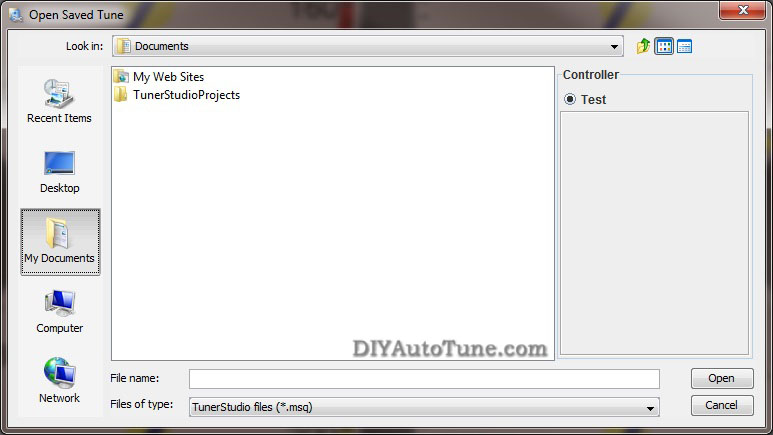

If you go to File → Open Tune (MSQ) in
TunerStudio, you can open a MSQ file and it will load it into your
MegaSquirtPNP. This will overwrite all the settings you currently have
saved in the MegaSquirtPNP’s memory. TunerStudio will confirm that you
want to do this. If you see a dialog box appear with a message that
there were warnings when you open the MSQ file, you should probably
cancel this until you can investigate further. Feel free to contact our
support team and we'll help you quickly determine what may be causing
the warning.

If you want to open a file just to examine
it, the safest way is to open it with the MSPNP disconnected. Then you
can go to the File menu and select Work Offline. You can then examine
the settings in the MSQ file without loading it onto your MegaSquirtPNP.
The "Save Tune" command under the File menu
will save your settings. TunerStudio will automatically suggest a name
based on the time you have saved the file, or you can specify your own
file names. We recommend you save frequently during the tuning process
so that you can always revert back if you make a change and find you
need to back out.
You can share MSQ files with other
MegaSquirtPNP users, though it can be risky business if you are not
careful. It's easier and generally safer to copy a MSQ file from another
MSPNP user running the same model MSPNP you are running, but you can
also use maps from standard MegaSquirt if you first set the spark,
input and output settings to match those in the MSPNP base map. There
are a few words of caution when sharing MSQ files. First, you will need
to make sure it is from a similar version of MS2/Extra, 2.1.0 or later
(Preferably 3.2.1 which is what comes loaded on the MSPNP's as shipped).
Do not try loading any MSQs from MS1 or MS3 variants. You will see a
warning if you try to load one from an incompatible firmware version;
don’t ignore this warning.
Second, non-MSPNP MegaSquirt (such as a
DIY MS model) may use different outputs from a MSPNP. Even the MSPNP's
cousin the DIYPNP is not always an exact match. You will want to check
to make sure all outputs are assigned to the same channels before
loading a non-PNP MegaSquirt map into your MSPNP. If these are not set
correctly, you may damage your ignition system or accidentally disable
certain features of the MSPNP.
The last potential source of trouble when
sharing MSQ files is that a different owner’s MSQ file may not be right
for your engine. It may be tuned for an engine with different
modifications, or may have a few mistakes in it's tuning (do you 100%
trust joeblow1997's from your favorite forum's tune file?). Loading an
untested/untuned MSQ file just before a race and going out for a few
laps without tuning it can be a recipe for disaster.
If you are not 100% sure of what you are
doing, then don't. You risk burning your ignitor and coil and/or
damaging your ECU. The base map provided is very good and will get you
well on your way to a well tuned car, you will need to fine tune your
car no matter where you get your 'base map' from, so you're best bet is
to put your car on the dyno, using our base map to start from, and dial
it in on your car.... no guesswork needed!
Loading firmware
It is very rare to need to load firmware
to a Gen 2 MSPNP as you do NOT need to change firmware to handle sensor
calibration as was needed with the Gen1 MSPNP units. You will only need
to reflash firmware if you are upgrading to a newer firmware release, or
have managed to damage your firmware by overwriting with an incompatible
MSQ file, like we just warned you about in the previous paragraphs. If
you need to load firmware, here's how to do it. Be sure to unplug your
ignition module (or coils) before loading firmware, and do not plug them
back in until you have loaded a MSQ file for your car. FAILURE TO DO
THIS CAN DAMAGE YOUR COILS OR IGNITION MODULE.
-
Connect the MSPNP to your computer
with the serial port.
-
Disconnect your ignition module.
-
Power up the MSPNP on the car.
-
Go into the Program Files/MegaSquirt
folder and open the MS2/Extra folder that matches the firmware you
wish to load to your MSPNP. If TunerStudio or other tuning software
is running, close it.
-
Open the program called
download-MS2-firmware.bat.
-
This program will first ask you a
couple of questions about loading the code; tell it you have a
MicroSquirt and which COM port you are using. Specify that you are
not upgrading from standard B&G firmware. Caution: Loading the
MS2/Extra version for a full sized MegaSquirt will cause problems
with the ignition output, and may even damage your ignition system.
Be sure you load it with the MicroSquirt version of the firmware, as
the DIYPNP is based on the MicroSquirt Module.
-
The utility will load the MS2/Extra
code. It will end with a message stating that verification has
succeeded. You can now connect to the DIYPNP with TunerStudio again.
Settings that should not be changed
The MSPNP does not lock you out of any of
the settings. As the core MegaSquirt EMS platform is very powerful and
designed to work on just about any engine running just about any sensors
and ignition system available, there are several settings used to
configure the ECU in order to allow the use of these sensors and
ignition systems. These are critical settings, and installing a
non-PNP MegaSquirt EMS must be researched and configured for each
vehicle. We've however taken the guesswork out of this with the
MSPNP, and you DON'T want to change these settings. We’ve configured the
MSPNP for your ignition already, and changing some of these settings
could cause your MSPNP to stop working with your engine, or worse, could
even damage your engine or electronics. In addition, there are several
settings and options for features not enabled on the MSPNP. Here are
some areas which you should not adjust, as well as some settings that
should only be adjusted if you have modified your ECU to enable them.
Ignition Settings you don't want
to touch unless you know what you're doing
With stock ignition system components
(crank and/or cam trigger wheels, ignition coils, ignitors, etc.), many
of the ignition settings need to be left as they are. The only reason to
adjust any of the ignition settings (including trigger wheel settings
and rotary settings) beyond the spark table are to set the base timing, which you must always do once prior to driving your vehicle
on the MSPNP. If you are changing the type of coil you are running to an
aftermarket coil or ignition module (ignitor) you might need to change
the dwell settings. One other scenario in which you might need to adjust
these is if you are converting from a distributor to a distributorless
ignition.
Fuel Settings you don't want to touch
unless you know what you're doing
Do not enable PWM current limiting for the
injectors – the MSPNP firmware just ignores this as it's not needed with
the addition of the Peak-N-Hold injector circuitry integrated into your
MegaSquirtPNP.
Changes to the staged injection or
sequential parameters may only work if you have made the appropriate
changes to the injector wiring. This is getting away from the PNP
(Plug-N-Play) aspect of this product by allowing you to upgrade your
ignition system and fueling beyond what the factory allowed for, and is
of course not required to use the product on a vehicle with a stock
ignition and fuel system. Input and output ports, such as those under
the Output Port Settings, Boost Control, and Tacho Output, are hardwired
and should not be changed except as specified in the manual. There is
also a reference to nitrous control, although nitrous outputs are not
installed on the MSPNP. (You may, however, use the table switching input
to use a different fuel and spark table for nitrous.)
Idle Control Valve Settings you
don't want to touch unless you know what you're doing
You also do not want to change the
settings for the type of idle valve unless you actually change out your
idle valve to a different valve. We've pre-configured the base idle
valve settings to control the factory idle valve on your vehicle's
engine. While you may need to fine tune the closed loop control
settings, or the PWM Warm-up settings, you don't need to change the base
configuration such as the idle valve frequency.
Settings you DO want to change/tune
Your MegaSquirtPNP allows you to tune all
of its settings, we don't hold anything back! Again this gives you all
of the power to configure your EMS however you'd like. Here are the
settings that are particularly important for tuning your MSPNP to get
the most out of your specific engine and modifications.
Fuel (VE) and Ignition Tables
The two main controls, the spark and VE
(fuel) tables, are tuned with a similar interface and in the same
manner. Both are located under the Basic Setup menu. You can access the
table directly and fill in values numerically, or you can toggle the
checkbox in the top . When viewing the table directly, note that you can
change the bins on the load and RPM axes. You can move these around to
accommodate boost or a higher RPM limit, or space a couple bins more
closely if you run into any spots that are difficult to tune. The engine
load % corresponds to manifold pressure when running speed density (the
default for our maps). 100% load is equal to 100 kPa, so engines running
forced induction will go over 100% load.

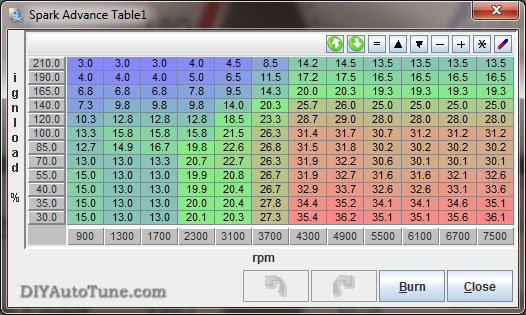

The spark advance table gives the spark
advance in degrees as a function of engine RPM and manifold absolute
pressure. The best way to tune this table is on a steady-state chassis
dynamometer, but you can often get significant power gains by dialing in
the ignition on an inertia dyno.

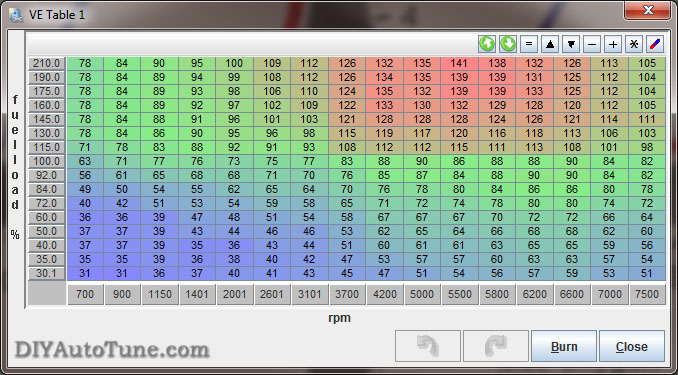

The VE table represents a correction
factor from how much fuel the MegaSquirt would inject if you were
running a stoichiometric (14.7:1) air to fuel ratio, and the engine
actually pulled in a volume of air equal to its own displacement every
engine cycle at the temperature and pressure that MegaSquirt measures.
You use the VE table to correct for both the engine’s actual volumetric
efficiency and to change the air/fuel ratio to richer or leaner as the
engine requires. Increase the number in a cell to add more fuel at that
MAP / RPM combination, and decrease the number to inject less fuel.


Acceleration Enrichments

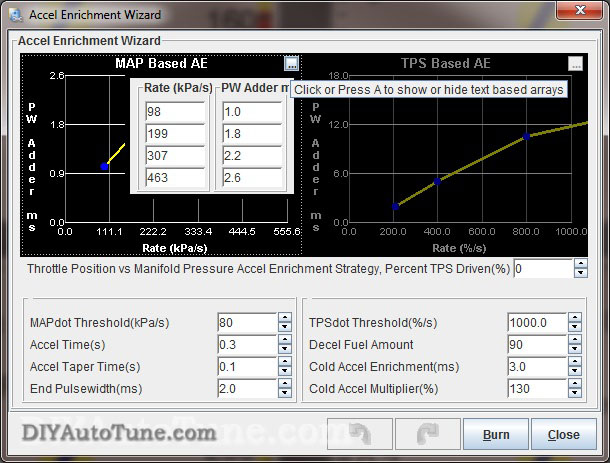

The acceleration wizard under the Accel
Enrich menu lets you adjust the amount of fuel added when you suddenly
hit the gas pedal. There are two graphs, one for MAP based and one for
TPS based. The “PW Adder” value is how much extra injector pulse width
to add, while the rate number is the change in kPa per second or
throttle opening percent per second respectively. For example, 100% TPS
per second equals the amount of throttle opening speed needed to go from
fully closed throttle to fully open in one second. You can adjust the
extra pulse width to increase or decrease the amount of fuel added based
on how quickly the manifold pressure changes. The Acceleration
Enrichment Settings lets you phase out the acceleration enrichment as
RPM comes up. It will start reducing acceleration enrichment when you
reach the Low RPM Threshold value, and turn it off completely above the
High RPM Threshold value.
The MSPNP also offers an acceleration
enrichment mode called Enhanced Acceleration Enrichment. Instead of
behaving like the accelerator pump on a carburetor, this feature uses
computerized models to determine and accommodate for the fuel that gets stuck
to the walls of your intake manifold and allows for very precise
tuning. You must have the VE
table dialed in correctly in all areas, including overrun and low RPM,
for Enhanced Acceleration Enrichment to work correctly. A complete guide
to tuning Enhanced Acceleration Enrichment is available here:
http://www.megasquirtpnp.com/eae

Rev Limiter
MSPNP incorporates a two stage rev
limiter, accessible under Basic Setup → Rev Limiter. The soft rev limit
simply pulls the amount of timing listed as Maximum Retard from the
timing table, while the hard cut can shut down the ignition, fuel, or
both. This behavior is all configurable on this screen. You choose
whether you want fuel cut, or spark retard at a certain RPM followed by
fuel cut a couple hundred RPM higher, or any number of possible
configurations. The latter is probably the most common configuration,
allowing the power to drop off just before redline, and then fuel cut at
whatever redline you choose. Note that a fuel cut will not run your
engine lean, it will completely CUT the fuel so that no fuel is flowing.
This has proven to be a safe method for use as a rev limiter on N/A and
forced induction vehicles.
As a general rule, you should only use the
spark cut rev limiter by itself if the car is not equipped with a
catalytic converter. Cars with catalytic converters should use the fuel
cut rev limiter, either on its own or in combination with spark cut.
Turning off the ignition without cutting the fuel will dump raw fuel
into the exhaust and can damage the catalytic converter.

Launch Control
The launch control is based on a rev
limiter. This is configured from the Extended → Launch Control dialog.
Often the best way to control this is with the stock clutch switch which
opens/closes a circuit based on the clutch pedal position. Note that
often this circuit also runs through the neutral safety switch on manual
transmission vehicles. This means that if you turn launch control on
using the stock clutch switch, it will activate when the transmission is
in neutral or when you push down the clutch. So when the trans is
in neutral, you'll have a launch control rev limiter. When you push in
the clutch and put the trans into first gear, you'll also have a launch
control rev limiter (which is when you want it) every time
after you first put the car in gear and take your foot off the clutch.
When you have the launch control active, the rev limits drop to the
limits specified on the launch control screen, letting you rev the
engine up to a fixed RPM that you can adjust. When you release the
switch, the rev limit is removed and you take off… nice and controlled.

Settings to Change for Modifications
(injectors/intake/exhaust/cams/boost/etc.)
Many mods will simply require tuning the
VE and spark tables to fit. Modifications to the sensors and fuel
system, however, require specific changes to the settings. Here are the
recommended changes for some common modifications.
Fuel Injector Compatibility
The MSPNP can drive a wide variety of
injectors, including both high and low impedance. Note that the MSPNP
ECU's case will run slightly warmer when controlling low impedance
injectors. This is normal and nothing to be concerned about. Should you
find you can fry eggs or bacon on your MSPNP ECU, please invite us over
for breakfast and we'll help you figure out what the deal is with that.
Changing to a different Fuel Injector
Size
When you change the injector size,
MegaSquirt can handle most of the adjustments with just one variable,
Required Fuel (aka REQ_Fuel), which sets the base pulse width.
TunerStudio can calculate this value automatically for you. To do this,
open BASIC → Engine Constants → Required Fuel. From there you just need
to enter your engine size, number of cylinders and injector size, as
well as 14.7 for the air/fuel ratio. Don't be concerned if the info in
this dialog doesn't match you engine when you first open it up, it doesn't
store your info here, just uses it to calculate the new REQ_Fuel number.

There are a few settings which need to be
tweaked when changing injector size that do not adjust when you change
REQ_FUEL as they are static pulsewidth (PW) settings, so you will need
to adjust these by hand. The acceleration enrichment settings will
probably need to be retuned for the new injectors. For instance if you
double your injector size, start at approximately half the acceleration
enrichment pulse width and fine tune from there. You may also need to
adjust the injector opening time under Injector Characteristics. This
number is more properly termed injector dead time, as it is the opening
time minus the closing time.
After swapping in new injectors and making
these adjustments, it’s a good idea to make sure your air-fuel ratios
are still where they should be. Sometimes the VE table will need a bit
of fine tuning due to differences in the way injectors behave, and it’s
also a math check for the changes you just made. Make sure the air-fuel
ratios are good before pushing the engine hard after an injector swap.
Wideband oxygen sensors
MSPNP supports many common wideband oxygen
sensor systems, including the Innovate Motorsports LC-1 and MTX-L line,
the Zietronix ZT-2 and ZT-3 (among others), and most other systems that
provide a programmable analog voltage output. There are a few changes
needed to the software settings in order to properly display and use the
wideband sensor input properly.
To switch TunerStudio over to a wideband,
go to File → Project Properties. Select the Settings tab and set Oxygen
Sensor / Display to Wideband, then click OK. Then you will need to tell
the MSPNP what voltage output your wideband controller sends. You do
this under Tools → Calibrate AFR Table. Most common wideband sensors can
be selected from the drop-down menu. If you don't see yours, or your
controller has been set to a nonstandard curve, you may select “Custom
Linear WB” and enter in its voltage and air/fuel ratio at two points to
match a linear output from your wideband to your MSPNP ECU.

Once you have set the MSPNP for your
sensor calibration, there are a few other settings you will need to
make. You will find most of these in the EGO Control option under the
Basic Setup menu. You will need to set the EGO Sensor Type to Single
Wide Band. The MegaSquirt will try to maintain the air-fuel ratio
specified under AFR Table 1 when running in closed loop mode. The
Controller Authority setting limits how much it can change the amount of
fuel delivered, so that a faulty sensor can only cause the engine to be
off by a small amount. This page also lets you disable the EGO control
at full throttle, idle, or when the engine is cold.
The registered version of TunerStudio is
also able to tune the VE tables on its own, based on inputs from a
wideband sensor. This feature is called VE Analyze Live. The software
will adjust the VE tables in a limited range to make the air-fuel ratio
match your target settings. Use this feature with caution and make sure
your targets and sensor readings are correct before you enable it. You
will usually still need to do fine tuning by hand. VE Analyze Live can
be used with a narrow band but only to target 14.7:1.
Tuning for Boost
When setting up MSPNP on a boosted engine,
you won’t have to change very many settings other than properly tuning
the VE and Ignition tables for the additional airflow and load. Start
with making sure your VE and spark tables go up to the maximum amount of
boost you plan to run. Since boost is gauge pressure and MegaSquirt
works in absolute pressure, this table will help you convert the amount
of boost to the maximum KPA level. These values go just a little above
the maximum boost setting. Note that this table assumes sea level
pressures as ambient.
The MSPNP is equipped with a 4 bar MAP
sensor, so the maximum amount of boost it can read is 44 psi of boost.
While higher amounts of boost will not damage the sensor in most cases,
it can damage your engine if you do not tune for it. The MSPNP will not
know to add any more fuel above 44psi to compensate because it cannot
detect the extra air/pressure, which can result in dangerous lean
conditions if you boost beyond that point. If you need a MAP sensor
capable of reading higher than 44psi please contact our tech support, we
can help!
Since MSPNP is a speed density system, you
do not need to recirculate the air in the intake (though you can if you
want to). If you prefer, you can go ahead and install a monster blow off
valve and vent it to the atmosphere without worrying about having it
throwing off your measurements.
Overboost Protection
Overboost protection is available under
the Extended menu. The MSPNP base map for factory naturally
aspirated vehicles has a default Overboost Protection
limit set of 150 kPa
which is a bit above 7 psi (depending on ambient pressure in your area).
This limit is there to prevent an overboost condition and to protect
your motor. If you've added a supercharger or turbocharger to the
engine you'll need to adjust this limit to be a bit above the amount of
boost you want to run.
When the threshold is reached, injector PW (pulse
width) will
be cut to 0 for a split second until MAP (manifold pressure) drops back
below the limit if overboost protection is turned on (and configured to
fuel cut, which is typically how it would be setup). Therefore with the
default settings on a factory naturally aspirated vehicle, if you try to boost
too near to 150 kPa you will feel the
engine cut out when Overboost Protection kicks in. This can feel like a
single cut, or it can feel like the car is erratically cutting out and
bucking if you stay on the throttle and continue to bounce off the
limiter. The Hysteresis value lets you determine how far the boost
pressure has to drop before the overboost protection is turned off
allowing the injectors to fire again. This 150kpa Overboost
Protection limit, and the hysteresis, are very easy to configure in the
tuning software on the Overboost Protection dialog under the Extended
Menu in TunerStudio MS.
NOTE-- for factory forced
induction cars (supercharger or turbo) the default boost cut
limit will vary by model. Typically this will be about 20% above
the factory boost levels normally seen on the vehicle model.
Please see the vehicle specific docs for your MSPNP model/vehicle for
further details on the default limit on your car. Tuning is the
same as above.

Boost Control
The MSPNP has an electronic boost control
feature supporting open and closed loop boost control. Once you have
wired this up, you can enable boost control in TunerStudio. In open loop
mode, the boost control solenoid puts out a signal at a fixed duty cycle
(that is, a percentage of time the solenoid is open) as a function of
RPM and the throttle position sensor. This is a bit easier to tune and
will generally keep the boost right where you set it, but can drift a
psi or two with dramatic changes in air temperature and other variables.
You'd be most likely to notice this if for instance you had tuned the
car on a 80degF day for 15psi of boost, then drove it on the 32degF day.
In that case you might see an extra pound or two of boost. Closed loop
boost control is a bit more complicated to tune, but when properly setup
allows the ECU target and correct to a specific boost pressure
regardless of ambient air temps and other variables that come into play.
NOTE-- while many EBC valves could be
used, we recommend using the EBC solenoid available from
DIYAutoTune.com. This is the valve we have tested with, and have setup
the base maps to support by default.
When running boost control, you'll set up
the basic parameters for the valve under the Boost Control screen in the
Advanced menu. For our EBC solenoid, we recommend a frequency of 19.5 Hz
and a control interval of 20 ms. The boost control pin is always PA0.
The Output Polarity setting is Normal. The duty cycles can be a little confusing at
first glance: They refer to waste gate opening, not solenoid opening. Set
fully closed to 100% duty cycle (this means an open valve applying
maximum pressure to the waste gate) and fully open to 0% duty cycle (a
closed valve will send no pressure to the waste gate).
Tuning Open Loop Boost Control
If you're using open loop boost control,
you'll next need to tune the 'Boost Duty Target' table. And easy way to
do this is to start by selecting the whole table (drag a box over all
cells), click the “=” button, and set the cells to 10%. Normally, 10%
duty cycle won't increase your boost at all, but when you test, watch
closely, you may need to use a lower number for your baseline, maybe
even all 0's.

Burn this and try it. See if your boost
increases ANY at all over your waste gate only boost levels. Then slowly
raise the whole table maybe 5-10% at a time (again, multi-select and
fill the whole table is the easy way). Burn it and test it. Datalog this
and compare how much boost you made to the prior pull. The pulls need to
be in the same gear with all conditions identical, preferably on a dyno,
though a track could work if you have a long consistent straight that
you can pull 3rd or 4th gear from before the turbo spools (maybe
2000rpm) on up to redline, repeatedly, in a safe environment. You're
looking for when you start making more boost. When you do then you can
start fine tuning at different RPM ranges. Adding a little more here,
pulling a little out there, moving around the RPM columns to make it do
what you want it to do, reviewing your logs in MegaLogViewer to see what
the results of each pull are. Notice in our example table below, we've
got 100%DC in the first column. That's an attempt at making the turbo
spool as fast as possible. The GT2560 turbo in our 91 Miata shop car is
fully spooled to 13.7psi by about 3500rpm. In order to keep it from
spiking though we had to bring the duty cycle way down to 45 by 3200
rpm, then after that we just 'gave it what it needed' to keep the boost
at about 13.7psi across the rest of the rpm range all the way to
redline. You can see in this table at higher revs it took less DC as the
turbo was wanting to make more boost so we had to pull the boost
controller back some to control it.
Bottom line, start at low duty cycles, make small
changes, and analyze the results of each pull. Remember that as you add
boost you're getting into previously untuned areas of your fuel and
spark tables and you'll need to adjust those as you go.
If your car has a variable TPS (throttle
position sensor) then you can also adjust open loop boost duty cycle
based on throttle position, making the waste gate increase or decrease
boost at lower throttle positions. Typically you'd reduce DC at lower
throttle positions, such as in the cruising speed range where you don't
want the turbo boosting to the moon.
Tuning Closed Loop Boost Control
We recommend tuning the open loop boost
control before you attempt to tune closed loop boost control. To tune
closed loop boost control, first set up the boost control target table.
You will enter the desired kPa reading as a function of throttle
position and RPM. You should not enter in any values lower than
waste gate pressure as the valve cannot reduce boost any further, your
mechanical wastegate's pressure is the baseline and can only be added to
by electronic boost control. Next you will tune the PID values under
Boost Control Settings to make it better hit these targets.

We'd recommend starting to tune CLEBC
(closed loop electronic boost control) at a lower boost pressure than
you ultimately intend to run. This will allow you to get a handle on
tuning this feature prior to running more serious pressures. Before you
start, make sure you've adjusted your VE and ignition tables
conservatively around and above the boost pressures you are targeting,
that means keep the fuel a bit richer than you expect to need, and the
ignition a bit retarded from where you expect it to be. To tune the PID
parameters, start with 100% proportional gain, 0% integral gain and
0% differential gain. If the boost overshoots above its target get out of
the loud pedal quickly, and increase the proportional gain. If it does
not spike, you may reduce the proportional gain until you get just a
very small amount of overshoot. Leave the proportional gain there. At
this point, the boost is likely to creep up slowly after reaching the
target. Add a bit more integral gain until the boost stays on target,
then increase differential gain until you have minimal overshoot when
the turbo first spools up. At this point the boost should track right
along with the target boost pressure you've set your MSPNP to target.
Datalogging
TunerStudio can log the MSPNP’s input and
output readings to help you dial in your tune, and it can also be a
great diagnostic tool. You can activate this by pressing Alt-L or going
to the Datalogging menu and selecting Start Logging. You wilfl be
prompted to enter a file name and save it. TunerStudio will start
recording after you save the file, and continue saving a data log until
you close TunerStudio or turn the logging off. You can then play back
these logs with MegaLogViewer to see if your tuning delivers the right
air-fuel ratios throughout the RPM range, to monitor commanded ignition
timing through the pull, or any number of variables that can help you
properly tune your engine. Things such as ignition dwell, manifold
pressure & boost, air/fuel ratio, idle valve duty cycle, boost control
valve duty cycle, and many other variables can be monitored here. This
is an EXCELLENT tuning tool, and is also an invaluable troubleshooting
tool should the need arise.
Knock Sensing
Your MSPNP is equipped with an adjustable
knock circuit with a built-in audio output to listen to the knock sensor
(similar to a set of detcans). There are a total of four adjustment
points accessible by removing the top cover. See the jumper diagram
at the bottom of Section 3 (above) for locations of these.
The “Volume” adjustment is only for the
headphones; it will not affect any of the other settings. This adjusts
the headphone volume. The sound on the headphones has been run through a
band pass filter to remove much of the engine background noise. This also
affects how knock sounds as it is centered on the fundamental knock
frequency. You will not hear a
“rocks in a coffee can” type sound if the engine is knocking. Instead,
the sound will be more like a very high pitched ringing, chirping, or
scratching sound. Clockwise increases the volume, be very careful with
this as it may need to be adjusted to work properly with the headphones
you use, and is capable of a fairly loud volume level depending on your
headphones.
The circuit works by
generating a threshold voltage based on RPM, and seeing if the signal
from the knock sensor goes over the voltage. The “Gain” adjustment knob
lets you amplify the signal before it is compared to a threshold
voltage. Turning the knob clockwise increases the amplification. The
“Start” knob sets the voltage at zero RPM, while the “Slope” knob sets
the amount the voltage increases as RPM increases. The threshold voltage
can be measured by checking the “Threshold” test point on the board, but
it can also be read through TunerStudio.
Here is how we
recommend adjusting the knock threshold on a dyno. Note this
requires a few steps in order to use the ECUs data logging/gauge
capability to capture the noise floor on your specific vehicle so that
we can then monitor for any noise above that floor.
-
Under Basic Setup
→ General, Lags, set Barometric Correction to “Initial MAP Reading.”
-
Under Extended →
Knock Sensor Settings, set Knock Control to Disabled.
-
Inside the case,
place the jumper at JS6 in the “Test” position (to the right).
-
Right click on one
of the gauges, and change it to ADC 6 under Sensor Inputs 2. This
gauge will give you your threshold voltage.
-
Right click on a
second gauge, and change it to ADC 7 under Sensor Inputs 2. This
gauge will give you the peak voltage reported by the knock sensor.
-
Set the spark
table to a conservative value that is known not to produce knock.
(If at any point you hear it knocking during this test through the
headphone jack, reduce the spark advance further.)
-
Conduct a full
throttle dyno pull (assuming and only if the ECU is fully tuned for
the car) and watch the ADC 6 and ADC 7 gauges. You will want to keep
the ADC6 gauge just a little under the value reported on the ADC7
gauge – the closer they are together, the more sensitive the system
will be to knock, although getting them too close together or having
ADC6 exceed ADC7 will result in false knock readings. Adjust the
Start and Slope pots as needed to get ADC6 to track closely with
ADC7 without exceeding it.
-
Inside the case,
place the jumper at JS6 back in the “Run” position (to the left).
-
Re-enable knock
sensing and real time barometric correction.

Going to the Dyno
Everyone should
properly dyno tune any standalone EMS to get the most out of their car
and the MSPNP is no different. However, dyno time is very expensive
diagnostic time – you want to have your car sorted before you go. You
don't want to show up to the dyno with your MSPNP in the box along with
your set of 550cc injectors and new boost controller....that's asking
for trouble. Go ahead and get the car running on the configuration
you'll be tuning before you get there unless you are planning to pay the
shop to do all of this for you, in which case you're probably dropping
the car off so they can schedule the work. If you're running bigger
injectors for example, install the MSPNP first and get that tested and
running, then install the bigger injectors, scale the REQ_FUEL and
acceleration enrichment on your MSPNP for the bigger injectors, and
again make sure it's properly sorted. If you're removing the AFM, go
ahead and do that as a separate stage as well, testing afterwards. The
idea is to make only one change at a time, so that if there is an issue
somewhere you know where to start looking.
Pre-Dyno Maintenance:
Make sure there are no leaks, you've got fresh oil, fresh plugs and good
wires, your air filter is clean, etc. A full tank of fresh fuel
helps too. If you've turbocharged a factory
n/a car then you should be running plugs at least one step, sometimes 2
steps, colder than stock. You should probably also gap them a bit
tighter than stock. You wouldn't believe how many people get their car
to the dyno and aren't ready to have their car on the dyno! Be ready!
To prepare the MSPNP
for dyno tuning, disable EGO Correction before you tune by going to
Basic Setup → EGO Control, and set Controller Authority to 0. After
tuning set it back to 5-10%, or whatever number you had been previously
using.
Also disable
Acceleration Enrichment by going to Accel Enrich → Accel
Enrichment
Settings. Set Low RPM Threshold to 0 and High RPM Threshold to 100. Also
turn Enhanced Acceleration Enrichment off. These can be set back to
their defaults (SET BY MODEL HERE) after tuning.
For best results, have
a qualified tuner dial your MegaSquirtPNP EMS in on a steady state dyno.
Loading it into each cell and tuning fuel first, and then doing the same
tuning ignition, finally tuning higher throttle doing ramp runs on up to
WOT ramp runs. That's our preferred method anyways, your tuner will have
their own plan but this is what we consider to be the proper order of
things. After dyno tuning you can re-enable EGO correction and
Acceleration Enrichments and fine tune the Accel Enrichments if they
need it. Cranking PW, Warm-up Enrichments, and AfterStart Enrichments
could need fine tuning as well though they are probably close enough to
serve you pretty well without adjustment.
Last step is cruise
tuning, which on a steady state dyno should be able to tuned 99% perfect
by putting low load on the dyno and running the vehicle in various gears
all the way down to first. In some cases, it may be easier to fine tune
this while actually cruising with the actual load you'll have on the car
in a real life cruise situation. You'll be looking for good gas mileage
and drivability here while minimizing emissions.
Section Five: The
complete warning list
Ignore it at your own
peril. These are in no particular order, so please read them all!
The MSPNP is not
designed to control emissions equipment and is not intended for use on
pollution controlled vehicles. Check local, state, and federal laws
governing you in your country/state/city before you even consider such a
thing.
If you ever need,
or choose, to upgrade or reload your firmware this is very important.
You must disconnect power to EITHER the coils or the ignitor when
reloading firmware, and load a valid MSPNP map before re-connecting the
ignitor/coil. Leaving the coil and ignitor connected when loading code
can possibly damage these components. If either of these is disconnected
the ignitor and coil will be safe during reflash. Just load a
valid MSPNP map, re-connect the ignitor/coil, and you're ready to tune.
The MSPNP is not
waterproof and is not designed to be mounted in the engine compartment.
While the base maps
provided are typically very close for a stock motor, and should work
pretty well on vehicles with minor modifications, it’s possible to
damage the engine if your tuning is too far away from what your engine
needs. If you choose to use an alternate 'base map' obtained from a
friend or on the interwebs, verify that any tuning files you have from
other users work correctly on your car, as they may be tuned for
different modifications or even setup for a different type of MegaSquirt
EMS that could even have used different base ignition settings. Ignoring
this and using someone else's base map could render your car undriveable
if you do not verify these key settings. At any rate, you must make sure
your ECU is properly tuned for your engine before racing or otherwise
pushing your engine to or near its limits.
The standard MAP
sensor in the MSPNP can handle up to 44 psi of boost. It is not able to
accurately measure air at higher boost pressure levels, although these
won't break the sensor.
If you use the DB15
connector for wideband oxygen input, you must disconnect the stock
oxygen sensor. Do not ground the oxygen sensor wire if you disconnect
it; leave it completely unconnected and taped off to prevent it from
shorting to the chassis or anything else. Do not attempt to plug a
wideband oxygen sensor directly into MSPNP without a suitable wideband
controller; you should connect the sensor to a controller and the
controller to MSPNP.
The registered version
of TunerStudio offers a very useful auto-tuning feature called VE
Analyzer Live. The VE Analyzer Live function in TunerStudio needs to be
used with caution and common sense. Make sure that the target settings
are appropriate and the wideband sensor is working correctly before
engaging VE Analyzer Live, and check the tuning afterwards to make sure
it is working correctly and add any fine-tuning necessary. No computer
can replace a qualified tuner…. OK, so that’s not entirely true… but
you’re relying on more than the computer. You’re relying on your
wideband o2 to be perfect. And have you ever seen what happens to a
wideband o2 at wide-open-throttle, or anytime really, when it overheats
(which is common on an untuned engine that still has too little ignition
advance)? The sensor starts reading crazy numbers. You don’t want any
computer responding to those wacky numbers by changing the tune of your
car and melting your pistons. Do you?
|
